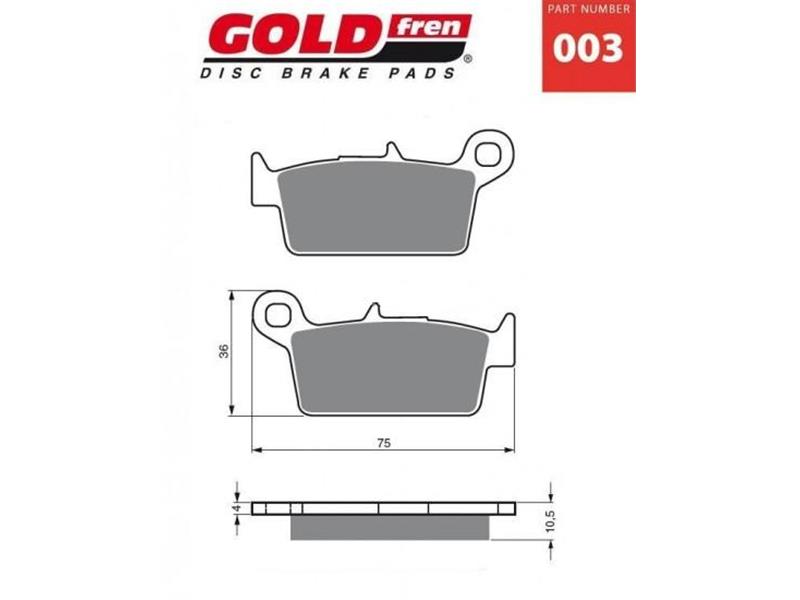

Zavorne ploščice GOLDFREN 003 S33
MATERIAL S33
Zavorne ploščice S33 so izdelane iz kovinsko-keramičnega tornega materiala, ki vsebuje fino rafinirano broneno-grafitno kovinsko mešanico z enakomerno razporejenimi kovinskimi tornimi delci. Izdelava temelji na napredni metodi metalurgije prahov, ki je vodilna v procesu sintranja. Primerne so tako za suho kot mokro trenje. Material S33 ne vsebuje azbesta in svinca.
ZNAČILNOSTI:
- Visok koeficient statičnega trenja.
- Dobra odpornost na obrabo in zmožnost samočiščenja.
- Majhna obraba zavornega koluta.
- Visoka zavorna moč do 600°C (MAX. 850°C).
- Majhna interakcija z zavornim kolutom.
- Okolju prijazen material.
- Termična zaščita na zadnji strani ploščice.
- Zelo dobra povezovalna moč med jekleno osnovno ploščo prevlečeno z bakrom in torno plastjo.
- Trikrat daljša delovna sposobnost v primerjavi z organskimi materiali in materiali iz kevlarja.
OBSEG UPORABE:
Material je primeren za uporabo v mokrih in suhih pogojih predvsem za terenska (off road) motorna kolesa. Zaradi odličnih lastnosti je idealna izbira za terenska (off road) tekmovanja. Priporočamo uporabo predvsem za zadnjo zavoro.
OPERATIVNI PARAMETRI MATERIALA:
Specifičen tlak: P<5.0 Mpa
Drsna hitrost: V<20 m.s-1
Konstantna maksimalna temp.: 600°C
Kratkotrajna maksimalna temp.: 850°C
OPOMBE:
Zamenjavo zavornih ploščic je potrebno opravit v suhem in čistem stanju. Če pride torni material v stik z oljem ali zavorno tekočino in se vpije v pore tornega materiala, se lahko pojavi katastrofalno zmanjšanje koeficienta trenja-zavornega učinka.
Na zavorni učinek zelo vpliva površina zavornega koluta, starost in kvaliteta zavorne tekočine ter pravilna izbira tornega materiala zavorne ploščice.
Priporočamo uporabo zavornih tekočin Putoline.
Zavorne ploščice, ki jih potrebujete lahko poiščete tudi v najnovejšem GOLDFREN online katalogu.
TABELA PRIPADNOSTI
AJP
PR5 250 Enduro 2009 - 2009 RR
PR5 250 Supermoto 2009 - 2009 RR
CPI
125 Sauel RR
GAS GAS
125 Pampera (2T) 2005 - 2008 RR
125 Trail Halley 2009 - 2009 RR
EC 125 (2T) 2000 - 2008 RR
MX 125 (MC) 2001 - 2008 RR
SM 125 (2T) 2001 - 2006 RR
SM 125 (2T) Supermotard 2003 - 2006 RR
SM 125 FSE 2002 - 2002 RR
SM 125 Halley 2009 - 2009 RR
EC 200 (2T) 2000 - 2008 RR
MX 200 1999 - 2000 RR
EC 250 (2T) 2000 - 2008 RR
MX 250 1999 - 2000 RR
MX 250 (MC) 2001 - 2008 RR
SM 250 (2T) 2001 - 2006 RR
SM 250 FSE 2002 - 2002 RR
EC 300 (2T) 2000 - 2008 RR
MX 300 1999 - 2000 RR
400 Pampera 2006 - 2006 RR
SM 400 FSE 2002 - 2002 RR
SM 400 FSE (2T) 2001 - 2002 RR
450 Pampera (4T) 2007 - 2008 RR
EC 450 FSE Enduro (4T) 2005 - 2009 RR
EC 450 FSR Enduro (4T ) 2005 - 2009 RR
SM 450 FSR (4T) Supermotard 2007 - 2009 RR
SM 450 Halley 2009 - 2009 RR
SM 450 Trail Halley 2009 - 2009 RR
EC 515 FSE Enduro (4T) 2005 - 2009 RR
EC 515 FSR Enduro (4T) 2005 - 2009 RR
SM 515 FSR (4T) Supermotard 2007 - 2009 RR
GOES
G 125 XM 2008 - 2009 RR
G 250 XM 2008 - 2009 RR
HM
CRE 80 1998 - 2002 RR
CR 85 R/R2 2003 - 2007 RR
CRE 125 1995 - 2001 RR
CRF 150 R 2007 - 2009 FL
HONDA
CB 50 V/W Dream 50 1997 - 1998 RR
XR 50 M5 (AD14) Motard 2005 - 2005 RR
CR 80 RN/RP/RR/RS/RT/RBT/RV/RBV/RW/RBW/RX/RBX/RY/RBY/R1/
RB1/R2/RB2 1992 - 2002 RR
CR 85 R3/RB3/R4/RB4/R5/RB5/R6/RB6/R7/RB7 2003 - 2007 RR
XR 100 M5 (HD13) Motard 2005 - 2005 RR
CR 125 RH/RJ/RK/RL/RM/RN/RP/RR 1987 - 1994 RR
CR 125 RS/RT/RV 1995 - 1997 RR
CR 125 RW/RX/RY/R1 1998 - 2001 RR
CRF 230 L 2008 - 2010 RR
CRF 230 M (Supermoto) 2009 - 2010 RR
SL 230 Free Landsports (MD33)V/W/X/1 1997 - 2001 RR
CR 250 RH/RJ/RK/RL/RM 1987 - 1991 RR
CR 250 RN/RP/RR 1992 - 1994 RR
CR 250 RS/RT/RV/RW/RX/RY/R1 1995 - 2001 RR
CRM 250 ARV/ARW Active Radial (MD32) 1997 - 1998 RR
CRM 250 R (RM) MK2/MD24 (1200001-1211634) 1991 - 1992 RR
CRM 250 R (RP-RP-II) MK2/2 MD24 (1300001-) 1993 - 1993 RR
CRM 250 RR/RRII (MD24 140) (MK3) 1994 - 1996 RR
XL 250 RL 1990 - 1990 RR
XLR 250 RM/R3N/RP/RR/R3R (MD22) 1991 - 1997 RR
XR 250 3/5 (MD30) Motard 2003 - 2005 RR
XR 250 III Y/3 Baja 2000 - 2003 RR
XR 250 RJ/RK/RL 1988 - 1990 RR
XR 250 RM/RN/RP/RR/RS 1991 - 1995 RR
XR 250 RT/RV/RW/RX/RY/R1/R2/R3/R4 1996 - 2004 RR
XR 250 Y/3 (MD30) 2000 - 2003 RR
XR 300 R10 2010 - 2010 RR
NX4 400 Falcon 2002 - 2005 RR
XR 400 M (ND08/NC38E) Supermotard 2006 - 2008 RR
XR 400 RT/RV/RW/RX/RY/R1/R2/R3/R4 1996 - 2005 RR
CR 500 RH/RJ/RK/RLR/RM/RN/RP/RR 1987 - 1994 RR
CR 500 RS/RT/RV/RW/RX/RY/R1 1995 - 2001 RR
XR 600 RM/RN 1991 - 1992 RR
XR 600 RP/RR/RS/RT/RV/RW/RX/RY 1993 - 2000 RR
XR 650 L 1993 - 2020 RR
XR 650 RY/R1-R7 2000 - 2007 RR
HONDA DALL'ARA
XR 250 R 2004 - 2004 RR
XR 650 R 2004 - 2004 RR
KAWASAKI
KX 125 /250/500 Supermotard with 320mm disc 2003 - 2005 RR
KX 125 K2/K3/K4/K5 1995 - 1999 RR
KX 125 L1/L2/L3/L4 1999 - 2002 RR
KX 125 M1/M2/M3 2003 - 2005 RR
KX 125 M6F/M7F/M8F 2006 - 2008 RR
KLX 250 J1-J6 D-Tracker 1998 - 2003 RR
KLX 250 S H6F/H7F 2006 - 2007 RR
KLX 250 SF 2009 - 2020 RR
KX 250 K2-K5 1995 - 1998 RR
KX 250 L1/L2/L3/L4 1999 - 2002 RR
KX 250 M1/M2/R1 (2T) 2003 - 2005 RR
KX 250 R6F/R7F/R8F (2T) 2006 - 2008 RR
KLX 300 A2/A3/A4/A5/A6/A7/A8/A9/A10/A6F/A7F 1997 - 2007 RR
KLX 300 R 2019 - 2020 RR
KLX 400 R (KLX 400 B1/B2) 2003 - 2004 RR
KX 500 E8-A16 1996 - 2004 RR
KLX 650 R D1 (KLX650C/G245) 1996 - 2000 RR
KYMCO
50 Cobra Cross 1999 - 2000 FL
90 Manboy 1996 - 1996 FL
125 Super-9 2000 - 2000 FL
SUZUKI
DR 125 SMK8/SMK9/SML0 2008 - 2012 RR
RM 125 K5-K9 2005 - 2012 RR
RM 125 T/V/W/X/Y/K1-K4 1996 - 2004 RR
RM 125 XCK8 2009 - 2009 RR
RM 250 K5/K6/K7/K8 2005 - 2008 RR
RM 250 T/V/W/X/K1-K9 1996 - 2012 RR
RM 250 XCK8 2009 - 2009 RR
RMX 250 ST/SV/SW/SX (SJ14A) 1996 - 1999 RR
SBK2 250 (LX 250 L) 2002 - 2002 RR
DR-Z 400 SEY/EY/Y/SEK1/EK1/K2/SEK2/EK2/K3/SEK3/EK3/K4/SEK4/EK4/
EK5/SK5/SK6/K6/SK7/K7/EK7/SK8/SK9 2000 - 2009 RR
DR-Z 400 SMK5/SMK6/SMK7/SMK8/SMK9 2005 - 2009 RR
TM
MX 85 2006 - 2012 RR
MX 85 (Big Wheel) 2002 - 2004 RR
MX 85 JR 2002 - 2004 RR
EN 125 Enduro (2T) 2001 - 2004 RR
MX 125 (2T) 2001 - 2004 RR
EN 250 Enduro (2T) 2001 - 2004 RR
EN 250 F Enduro (4T) 2004 - 2004 RR
MX 250 (2T) 2001 - 2004 RR
MX 250 (4T) 2002 - 2004 RR
SM 250 2002 - 2002 RR
SME 250 (4T) 2004 - 2004 RR
SME 250 (4T) 2006 - 2006 RR
EN 300 Enduro (2T) 2001 - 2004 RR
MX 300 (2T) 2001 - 2004 RR
MX 400 Cross (4T) 2002 - 2003 RR
SM 400 2002 - 2003 RR
SME 400 (4T) 2004 - 2004 RR
EN 450 F (4T) 2004 - 2004 RR
MX 450 F 2004 - 2004 RR
530 (4T) Cross 2002 - 2003 RR
EN 530 F (4T) 2004 - 2004 RR
SM 530 2002 - 2003 RR
SME 530 (4T) 2004 - 2004 RR
SMX 600 F 2003 - 2003 RR
YAMAHA
WR 125 1998 - 2001 RR
YZ 125 2001 - 2001 RR
YZ 125 K/L/M (2T) 1998 - 2000 RR
YZ 125 N/P (2T) 2001 - 2002 RR
WR 250 FN/FP (4T) 2001 - 2002 RR
WR 250 ZK 1998 - 1998 RR
YZ 250 2001 - 2001 RR
YZ 250 2002 - 2002 RR
YZ 250 FN/FP (4T) 2001 - 2002 RR
YZ 250 K/L/M/N/P 1998 - 2002 RR
WR 400 FL/FM 1999 - 2000 RR
WR 400 FN 2001 - 2001 RR
YZ 400 FL 1999 - 1999 RR
WR 426 FN/FP 2001 - 2002 RR
YZ 426 FM/FN/FP 2000 - 2002 RR
